FV Vans delivers more capacity, seamless cab-to-body access, and builder-friendly features for easy upfitting.

• Spacious Interior - You get more cargo volume with a wider and taller body design.

• Full Passthrough - Easy access between the cab and the body, allowing for swivel seats.

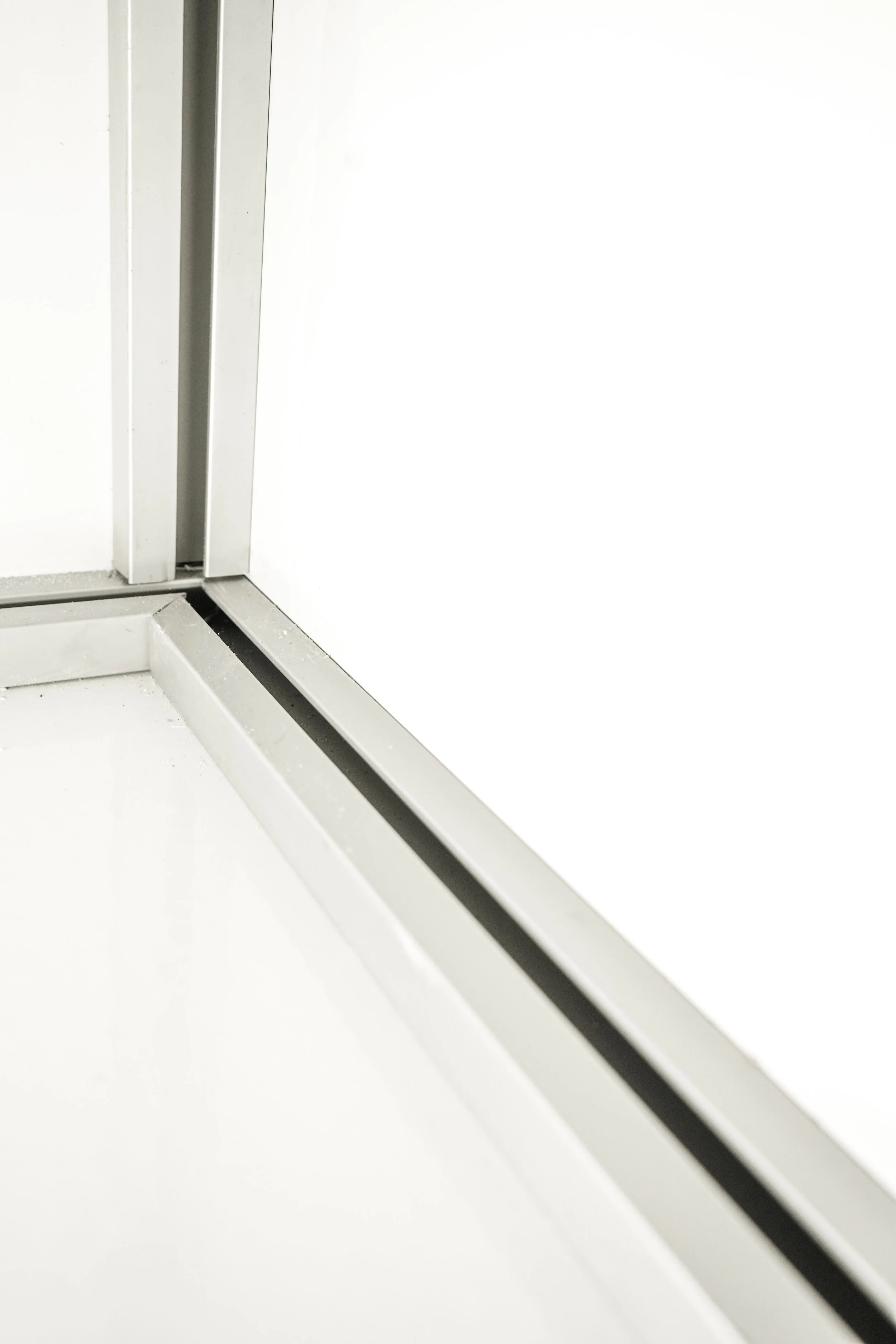

• Easy Attachment Points - Quickly secure upfit components and reconfigure with ease of 80/20 integrated into the body.

• 90-Degree Surfaces - Unlike standard cargo vans, our bodies have perfect right-angle corners designed to make custom upfitting hassle-free.

FV 170 combines innovative engineering, robust materials, and superior insulation to ensure long-lasting performance in any environment.

• Torsion Reduction Subframe - Our exclusive subframe design minimizes road forces transferred to the body, significantly reducing structural fatigue over time.

• High-Impact Resistant Construction - The inner and outer skins are engineered for exceptional impact resistance, designed to endure even the most demanding conditions.

• Fully Insulated R10 - Our fully insulated body allows for highly efficient climate control in any environment for you and your cargo.

• Inorganic Materials - Our inorganic, fire-retardant materials do not absorb water, produce mold, or decay over time.

Our vehicles are backed with the assurance of expert engineering and support.

• Mercedes Quality - You can trust that our vehicles meet the highest engineering standards.

• Factory Warranty - Your vehicles are covered by Mercedes’ factory warranty and can be serviced at any Mercedes dealership.

Flexible Financing

• Financeable - Our flexible financing options enable you to invest in quality from the start.

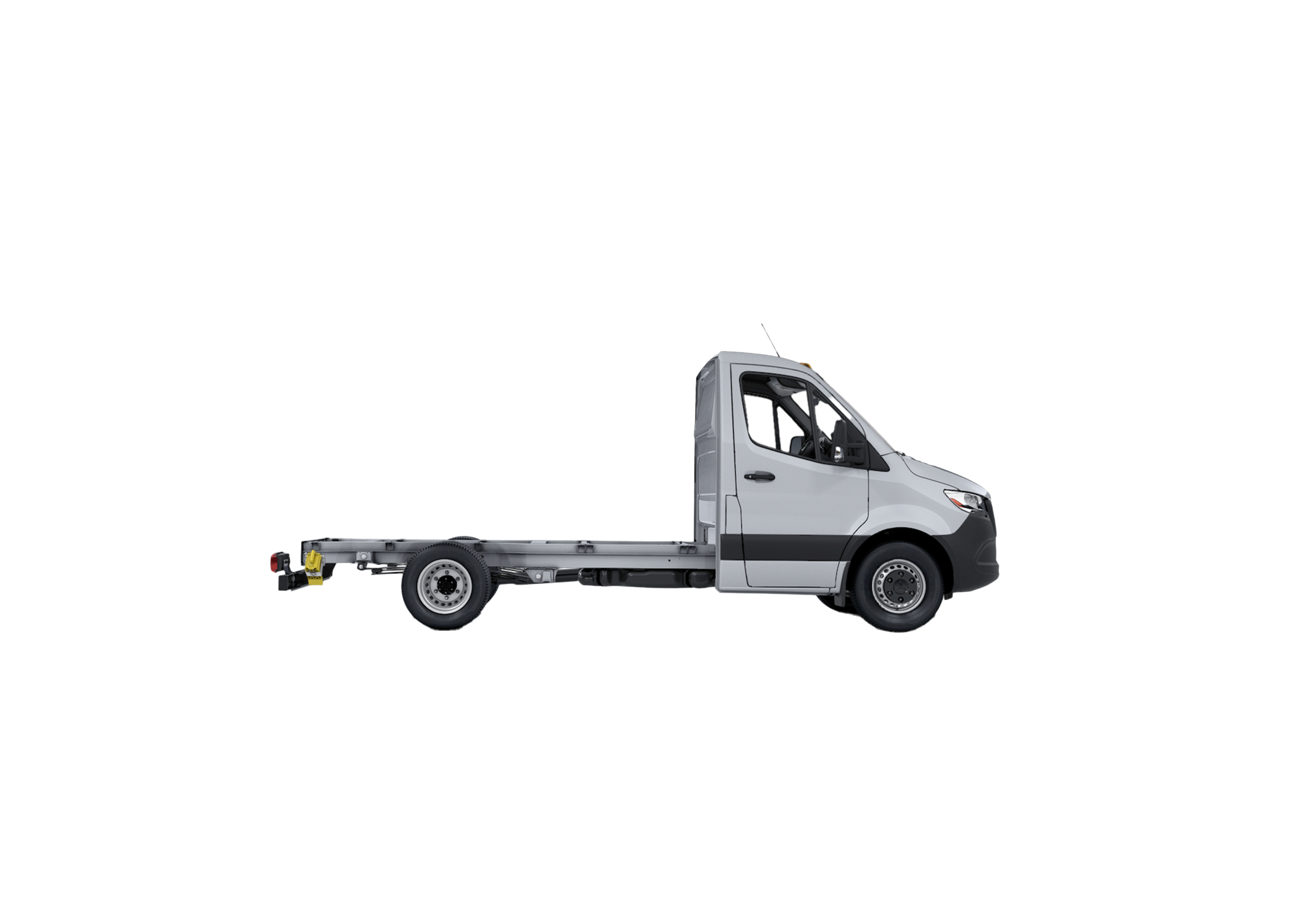

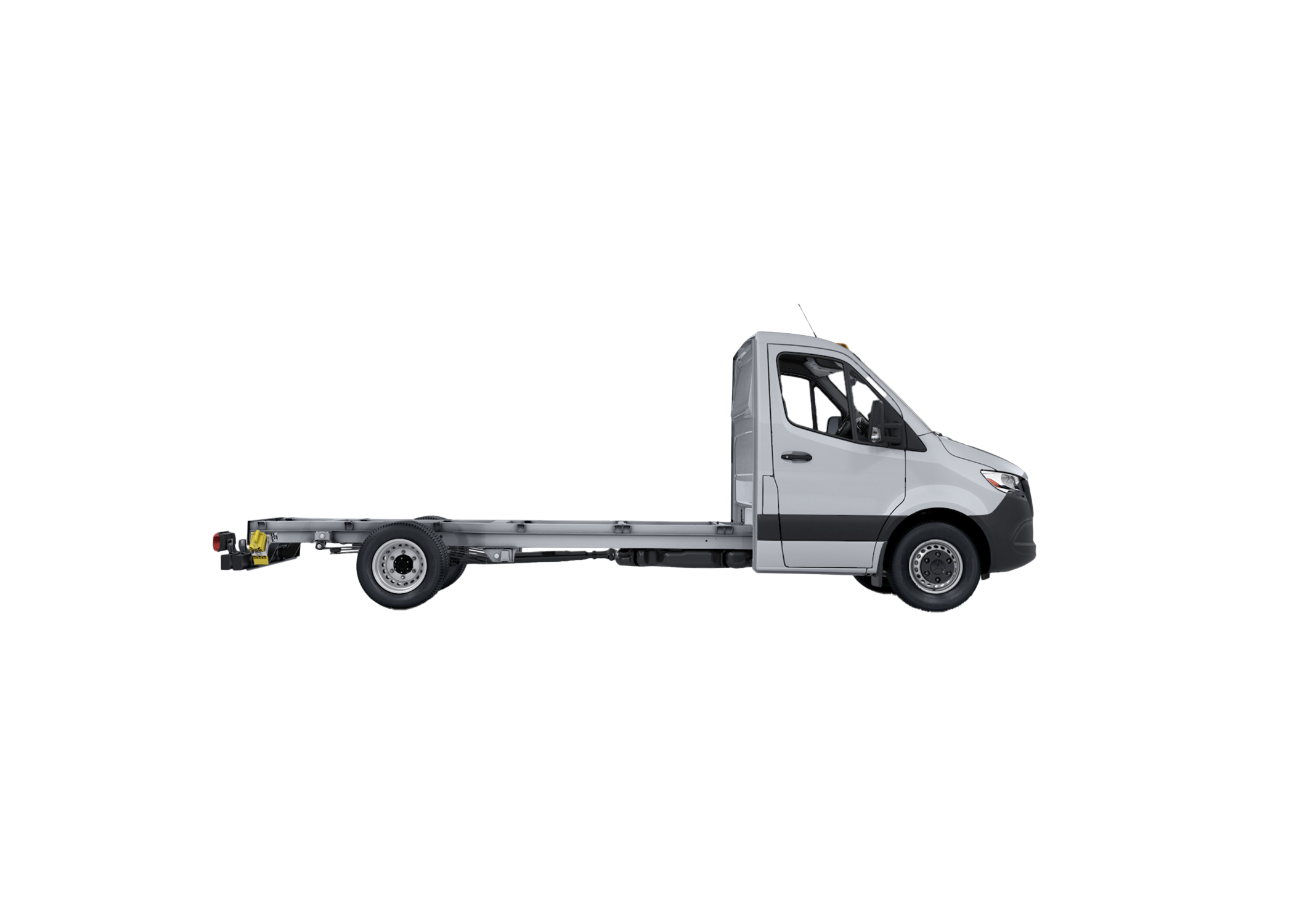

• 2025 Mercedes-Benz Sprinter 3500XD 170wb chassis

• 18.5' Cab-Over box

• R10 insulated

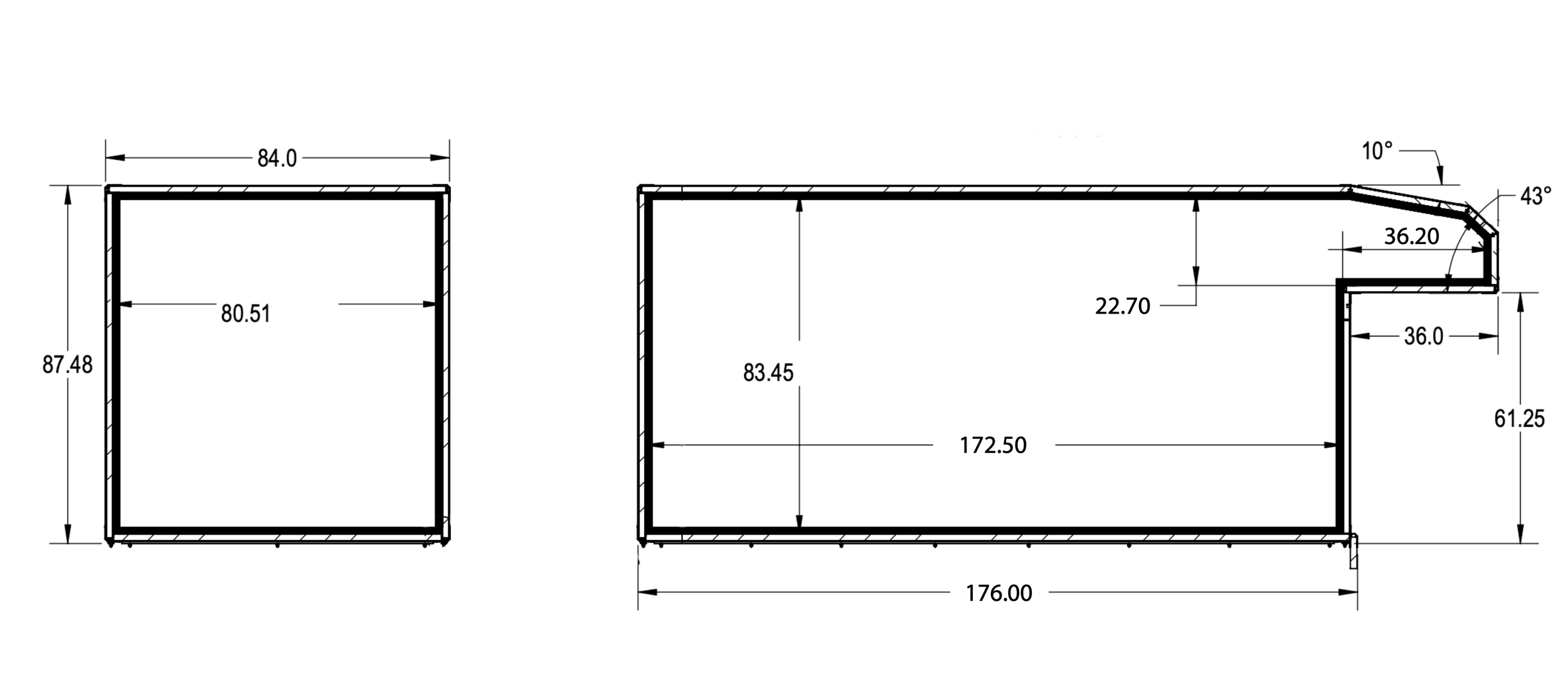

• Flat 15' x 7' floor space + cabover

• Exterior Length 24'

• Exterior Height 10' 6"

• Exterior Width 7'2.5"

• Interior Height 7'

• Interior Width 6'9"

• Fuel Capacity 24.5 gal

• Max GVWR 12,125 lbs

• Wheelbase 170"

• Option the van chassis to suite at your local Mercedes-Benz dealer

• 5 side entry door positions

• 4 rear door configurations

• Flat pack frameless windows

• Additional doors and access hatches

• Contact our Special Projects Division (SPD) for additional requests
